Description
The TURNEX150 has a straight lever bar and a trunnion at the forward end with a spindle passing through to which a threaded anchor adaptor is attached.

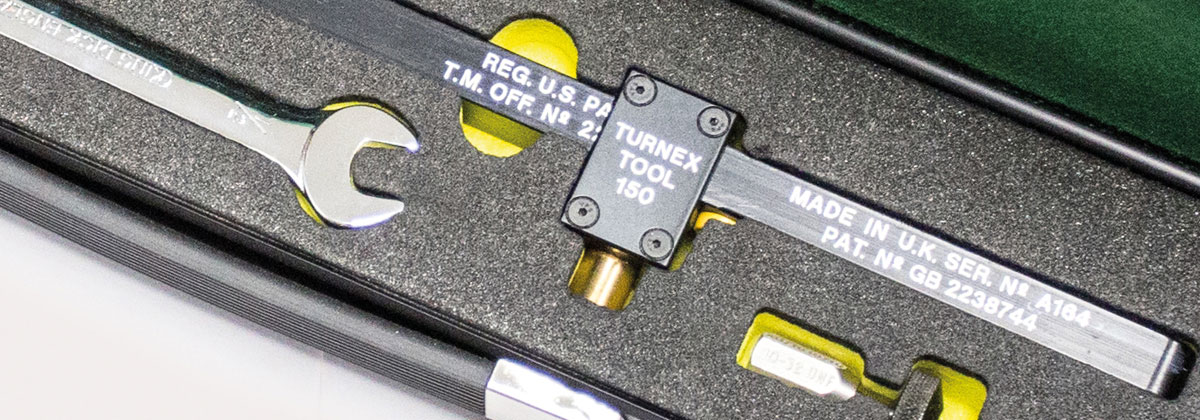

A slide block assembly is mounted on the lever bar. This system allows for vernier adjustment on the pitch of the screw.
Application
This kit is designed for use on leading edges, curvatures and tight radii on flight surfaces. Ideal for confined spaces ie working on floor panels with cabin seats fitted.
Effective up to a 3” screw pitch.
| Component materials |
| Aluminium Alloy and Steel |
| Measurements |
| Length 60cms, Width 2cms, Depth 1.5cms |
| Operating weight |
| 890 grammes |

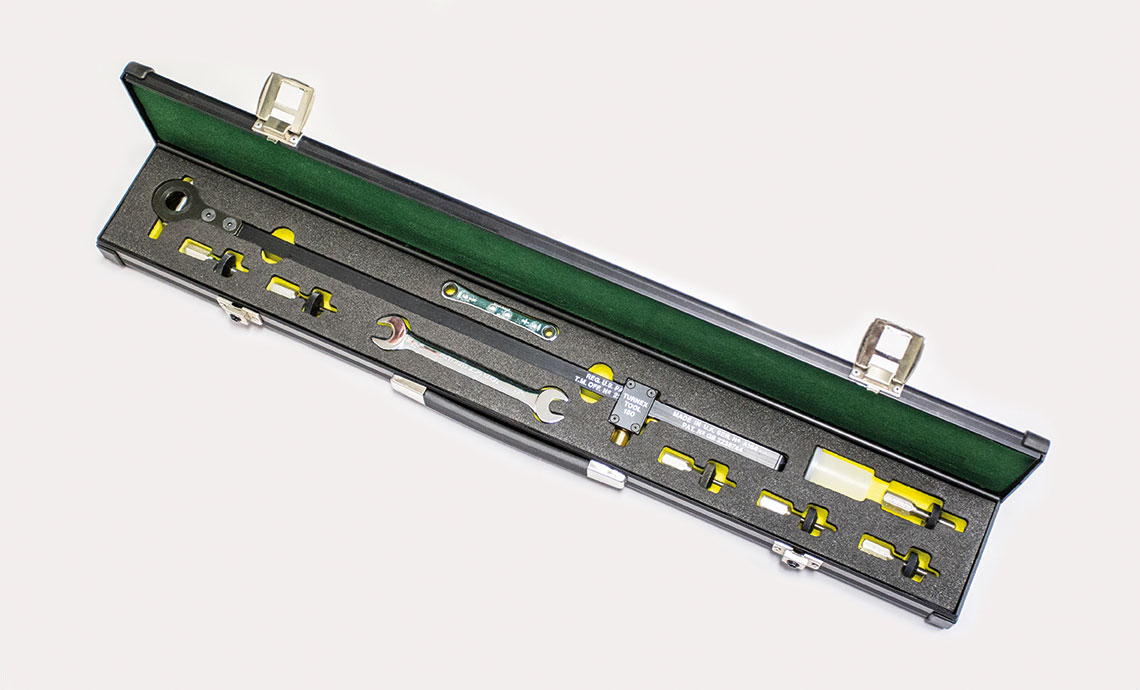

TURNEX150 Imperial Tool Kit
Part No. TURNEX150 IMP
KIT NSN 5180-99-7243759
| Contents – Imperial | Part No. |
| TURNEX150 Fastener Extraction Tool | TURNEX150 |
| 10/32 UNF Adaptor | A0/1010/10 |
| 1/4 UNF Adaptor | A0/1010/11 |
| 5/16 UNF Adaptor | A0/1010/12 |
| 3/8 UNF Adaptor | A0/1010/13 |
| 10/32 UNF Adjustable Adaptor | A0/1010/10D |
| 1/4 UNF Adjustable Adaptor | A0/1010/11D |
| 1/4 x 5/16 AF Ratchet Ring Spanner | 5120-01-0480170 |
| 7/16 AF Open Ended Spanner | 5120-99-1300070 |
| 1/2 x 9/16 Open Ended Spanner |
TURNEX150 Metric Tool Kit
Part No. TURNEX150 MET
KIT NSN 5180-99-5626176
| Contents – Metric | Part No. |
| TURNEX150 Fastener Extraction Tool | TURNEX150 |
| 4mm Adaptor | A0/1010/M4 |
| 5mm Adaptor | A0/1010/M5 |
| 6mm Adaptor | A0/1010/M6 |
| 8mm Adaptor | A0/1010/M8 |
| 5mm Adjustable Adaptor | A0/1010/M5D |
| 6mm Adjustable Adaptor | A0/1010/M6D |
| 8mm Adjustable Adaptor | A0/1010/M8D |
| 1/4 x 5/16 AF Ratchet Ring Spanner | 5120-01-0480170 |
| 14mm x 15mm Open Ended Spanner |
